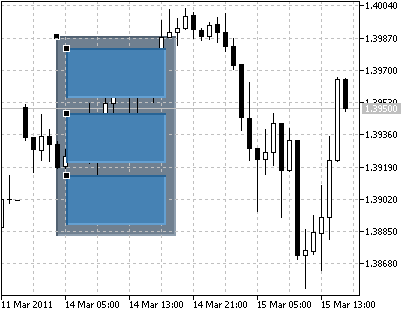

This object is intended for creation of custom graphic interfaces. It can have different states that can be processed by an MQL5 program. For example, a program can execute an operation as a reaction to user interaction with this object.
Controls
An object can be moved using an anchor point located in its upper left corner.

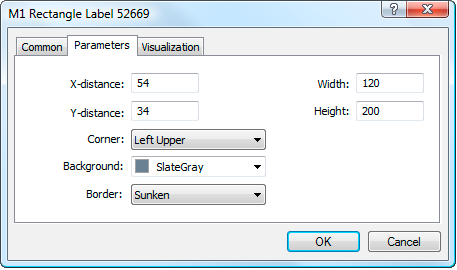

Parameters
There are the following parameters of the object:
- X-distance — distance in pixels from the anchor corner of the chart window till the control point of the object along the time axis;
- Y-distance — distance in pixels from the anchor corner of the chart window till the control point of the object along the price axis;
- Width — width of the object in pixels;
- Height — height of the object in pixels;
- Corner — one of the corners of the chart window, from which distances along X and Y axes will be set;
- Background — the object fill color;
- Border — select the type of the object Border: Flat, Raised, Sunken.
